TurboCaser®
Introduction
The TurboCaser® is a pass-through, turbine-powered reaming system that enables casings and intermediate liners to land at target depth.
Its turbine drives high-speed rotation of the reamer shoe independent of the casing string, no string rotation required, reaming through tight hole, ledges, and cutting beds on the way to TD, with the casing cemented conventionally once landed.
The drillable turbine is designed for rapid drill-out, typically 20-25 minutes, with no dedicated drill-out trip, allowing the same BHA to drill through and drill ahead in one operation.
No String Rotation Required
The turbine powers the reamer shoe directly, keeping the casing string static while reaming to depth.
Drilled Out in Minutes
Rapid drill-out, typically 20-25 minutes, with full bore pass-through. The same standard BHA drills through and drills ahead in one operation.
Case Trouble Zones Quickly
Reduces or eliminates wiper trips in unstable formations, tight hole, and wells where casing has previously failed to reach TD.
How It Works
Reaming Power at the Shoe
When casing meets tight hole, ledges, or cutting beds, the conventional answer is wiper trips, reciprocation, or pulling out entirely. This adds rig time, well construction risk, and HSE exposure with every attempt.
The TurboCaser® puts reaming power where it's needed: at the shoe. Its turbine converts circulation into high-speed rotation of the reamer shoe, independent of the casing string, working the casing through trouble zones to target depth. Once landed, the casing is cemented conventionally.
The drill bit then passes straight through the drillable turbine, typically in 30 minutes, and continues drilling ahead with the same standard BHA, with no dedicated drill-out trip required.
Related Videos

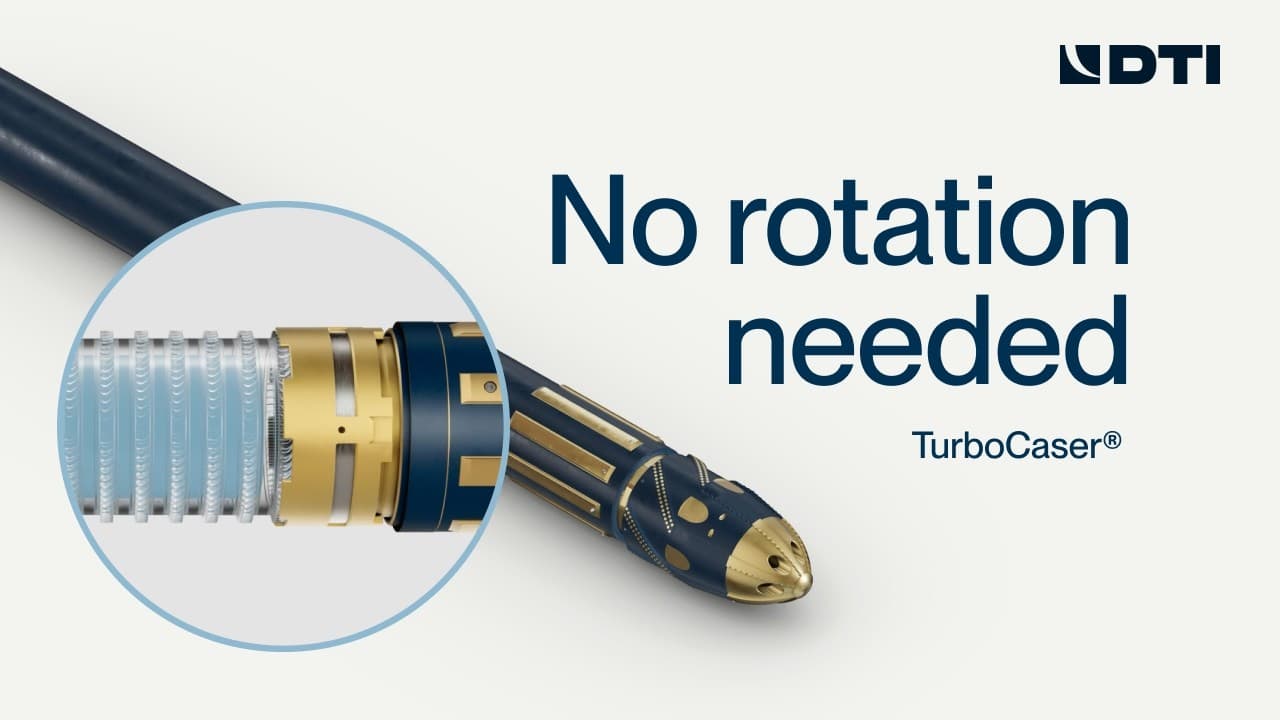

Getting a Liner to TD Without Rotating the String
Stop Round-Tripping for Ledges and Doglegs
